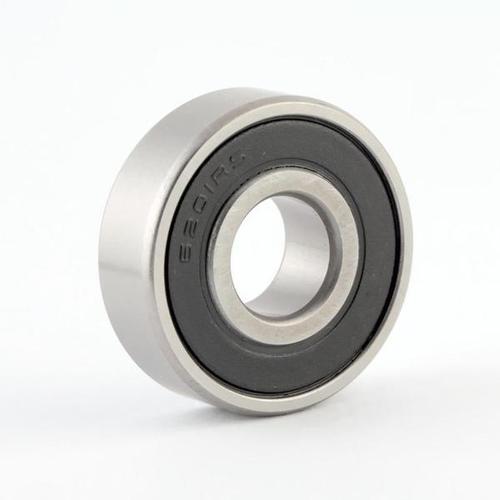

CHINA Ball Bearing 6201 2RS
from 6200 to 6204,the quality rate we can produce from ABEC1Z1V1 to ABEC7Z4V4,price will be competitive and quality is stable!
| Bearing No. | Bore | O.D | Width | Load Rating（KN） | Ball Complement | Maxronout Speed | Weight(kg) | ||||||
| d | D | B | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
| mm | in | mm | in | mm | in | Cr | Cor | mm | r/mm | r/mm | |||
| 625 | 5 | 0.1969 | 16 | 0.6299 | 5 | 0.1969 | 1.13 | 0.56 | 8 | 2.381 | 32000 | 40000 | 0.005 |
| 626 | 6 | 0.2362 | 19 | 0.7480 | 6 | 0.2362 | 2.01 | 1.05 | 6 | 3.500 | 28000 | 36000 | 0.008 |
| 627 | 7 | 0.2756 | 22 | 0.8661 | 7 | 0.2756 | 2.53 | 1.36 | 7 | 3.969 | 26000 | 34000 | 0.014 |
| 628 | 8 | 0.315 | 24 | 0.9449 | 8 | 0.3150 | 2.57 | 1.36 | 7 | 3.969 | 24000 | 32000 | 0.016 |
| 629 | 9 | 0.3543 | 26 | 1.0236 | 8 | 0.3150 | 3.52 | 1.95 | 7 | 4.763 | 22000 | 30000 | 0.019 |
| 6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 5.10 | 2.39 | 8 | 4.763 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 6.10 | 2.75 | 7 | 5.953 | 22000 | 26000 | 0.037 |
| 6202 | 15 | 0.5906 | 35 | 1.3779 | 11 | 0.4331 | 7.75 | 3.60 | 8 | 5.953 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 9.60 | 4.60 | 8 | 6.747 | 18000 | 21000 | 0.065 |
| 6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 12.80 | 6.65 | 8 | 7.938 | 16000 | 18000 | 0.110 |
| 6205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 14.00 | 7.85 | 9 | 7.938 | 13000 | 15000 | 0.130 |
| 6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 19.50 | 11.30 | 9 | 9.525 | 11000 | 13000 | 0.200 |
| 6207 | 35 | 1.3779 | 72 | 2.8346 | 17 | 0.6693 | 25.70 | 15.30 | 9 | 11.112 | 9800 | 11000 | 0.290 |
| 6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 29.10 | 17.80 | 9 | 12.000 | 8700 | 10000 | 0.370 |
| 6209 | 45 | 1.7716 | 85 | 3.3465 | 19 | 0.748 | 32.50 | 20.40 | 10 | 12.000 | 7800 | 9200 | 0.410 |
| 6210 | 50 | 1.965 | 90 | 3.5433 | 20 | 0.7841 | 35.00 | 23.20 | 10 | 12.700 | 7100 | 8300 | 0.460 |
