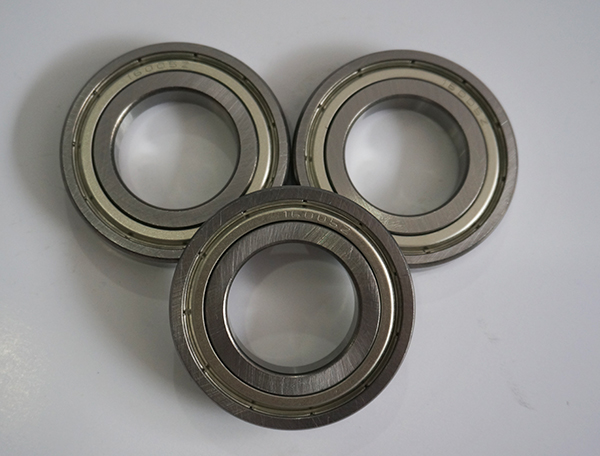

CHINA BALL BEARING 16005ZZ

CHINA BALL BEARING 16005 ZZ

ALL BEARINGS FROM US WITH GURANTEED QUALITY AND ALSO VERY VERY COMEPTITIVE PRICE!

Bearing No.	Bore		O.D		Width		Rsmin		Load Rating（KN）		Weight(kg)
	d		D	B	B		Rsmin		Dynamic	Static
	mm	in	mm	in	mm	in	mm	in	Cr	Cor
16100	10	0.3937	28	1.1024	8	0.3150	0.3	0.012	5110	2380	0.022
16101	12	0.4724	30	1.1811	8	0.3150	0.3	0.012	5110	2380	0.023
16001	12	0.4724	28	1.1024	7	0.2756	0.3	0.012	4320	2250	0.024
16002	15	0.5906	32	1.2598	8	0.3150	0.3	0.012	5590	2840	0.025
16003	17	0.6693	35	1.3780	8	0.3150	0.3	0.012	6000	3250	0.032
16004	20	0.7874	42	1.6535	8	0.3150	0.3	0.012	6340	3790	0.050
16005	25	0.9843	47	1.8504	8	0.3150	0.3	0.012	6940	4600	0.060
16006	30	1.1811	55	2.1654	9	0.3543	0.3	0.012	9950	6530	0.085
16007	35	1.3780	62	2.4409	9	0.3543	0.3	0.012	10820	7830	0.110
16008	40	1.5748	68	2.6772	9	0.3543	0.3	0.012	11590	9130	0.125
16009	45	1.7717	75	2.9528	10	0.3937	0.3	0.024	11830	9880	0.170
16010	50	1.9685	80	3.1496	10	0.3937	0.6	0.024	12510	11100	0.180
16011	55	2.1654	90	3.5433	11	0.4331	0.6	0.024	19300	16300	0.260
16012	60	2.3622	95	3.7402	11	0.4331	0.6	0.024	20000	17500	0.280
16013	65	2.5591	100	3.9370	11	0.4331	0.6	0.024	21200	17800	0.300
