Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

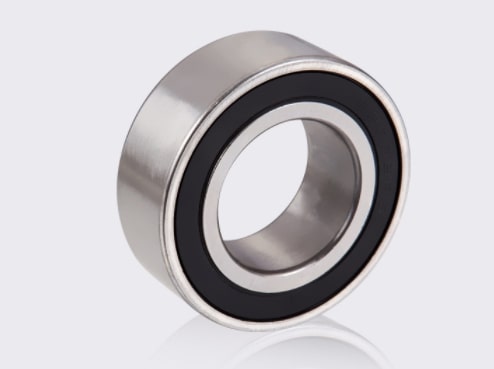

Deep groove Ball Bearing 63006

Product Name:

Deep groove Ball Bearing 63006

Number :

63006

Product Description:

Bearing No.	Bore		O.D		Width		Load Rating（KN）		Ball Complement		Maxronout Speed		Weight(kg)
	d		D	B	B		Dynamic	Static	No.	Size	Grease	Oil
	mm	in	mm	in	mm	in	Cr	Cor	No.	mm	r/mm	r/mm
63000	10	0.3937	26	1.0236	12	0.4724	4.62	1.96	7	4.763	26000	30000	0.025
63001	12	0.4724	28	1.1024	12	4.4724	5.10	2.39	8	4.763	26000	30000	0.029
63002	15	0.5906	32	1.2598	13	0.5118	5.60	2.84	9	4.763	22000	26000	0.039
63003	17	0.6693	35	1.378	14	0.5512	6.80	3.35	10	4.763	20000	24000	0.052
63004	20	0.7874	42	1.6535	16	0.6299	9.40	5.05	9	6.350	18000	21000	0.086
63005	25	0.9843	47	1.8504	16	0.6299	10.10	5.58	10	6.350	18000	18000	0.100
63006	30	1.1811	55	2.1645	19	0.7480	13.20	8.30	11	7.144	13000	15000	0.160
63007	35	1.3779	62	2.4409	20	0.7874	16.00	10.30	11	7.938	1200	14000	0.210
63008	40	1.5748	68	2.6772	21	0.8268	16.80	11.50	12	7.938	10000	12000	0.260
63008	45	1.7716	75	2.9528	23	0.9055	20.80	14.60	12	8.731	5600	6600	0.340
63010	50	1.965	80	3.496	23	0.9055	21.60	16.00	13	8.731	5000	6000	0.370
