Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

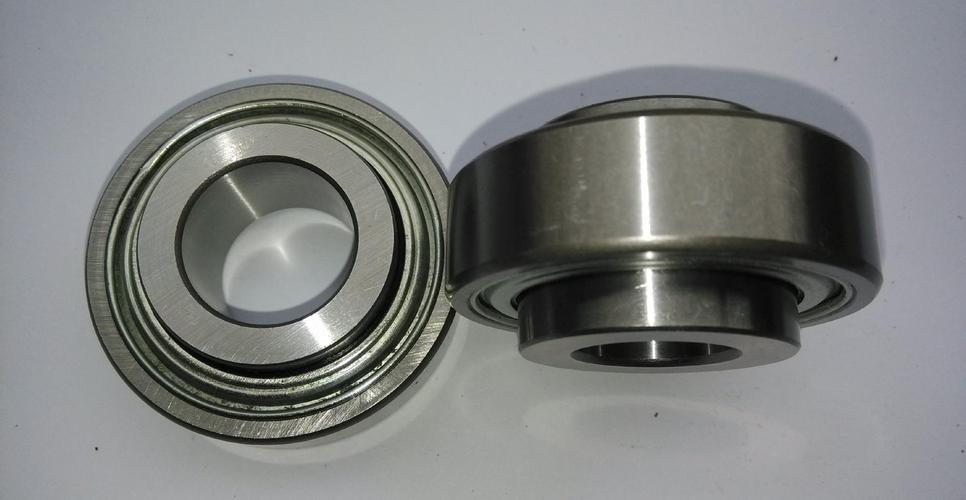

Agricultural Bearing 203KR2

Product Name:

Agricultural Bearing 203KR2

Number :

203KR2

Product Description:

Shaft Diameter	Bearing Type	Type	Dimensions(Min./Mm)			Load (N)		Weight(Kg)
(D/Min.)			D	C	B	Cr	Cor
0.625	203KR2	4	1.5748	0.472	0.551	12800	6650	0.077
15.88			40	12	14
0.64	203KRR2	1	1.5748	0.472	0.72	12800	6650	0.085
16.26			40	12	18.29
0.515	203KRR5	1	1.5748	0.472	0.72	12800	6650	0.096
13.08			40	12	18.29
0.64	203KRR6	1	1.8504	0.472	0.72	12800	6650	0.13
16.26			47	12	18.29
0.669	203KRR7	1	1.5748	0.472	0.654	12800	6650	0.079
17			40	12	16.61
0.7505	204KR2	4	1.7805	0.61	0.61	12800	6650	0.107
19.063			45.23	15.49	15.49
0.7874	204KRR3	1	1.8504	0.551	0.699	12800	6650	0.121
20			47	14	17.76
0.63	204KRD4	2	1.8504	0.551	0.689	12800	6650	0.135
16			47	14	17.5
0.63	204KRR14	1	1.8504	0.591	0.72	12800	6650	0.142
16			47	15	18.29
0.75	205KR3	5	2.0472	0.6992	0.6402	14000	7850	0.161
19.05			52	17.76	16.26
1.0005	205KR4	3	2.0472	0.591	1	14000	7850	0.148
25.41			52	15	25.4
1.181	206KR7	3	2.441	0.63	0.945	19450	11250	0.26
30			62	16	24
1.181	206KRR8	1	2.441	0.63	0.945	19450	11250	0.26
30			62	16	24
1.2598	206KRR18	1	2.441	0.63	0.945	19450	11250	0.219
32			62	16	24
1.378	207KRR	1	2.8346	0.669	0.984	25700	15200	0.35
35			72	17	28
1.5748	208KRR2	1	3.1496	0.827	1.063	29500	18100	0.45
40			80	21	27
1.9685	210KRR	1	3.5433	0.7874	1.181	35000	23200	0.524
50			90	20	30
2.7559	214KRR	1	4.9212	1.1024	1.6929	62100	44800	1.546
