Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

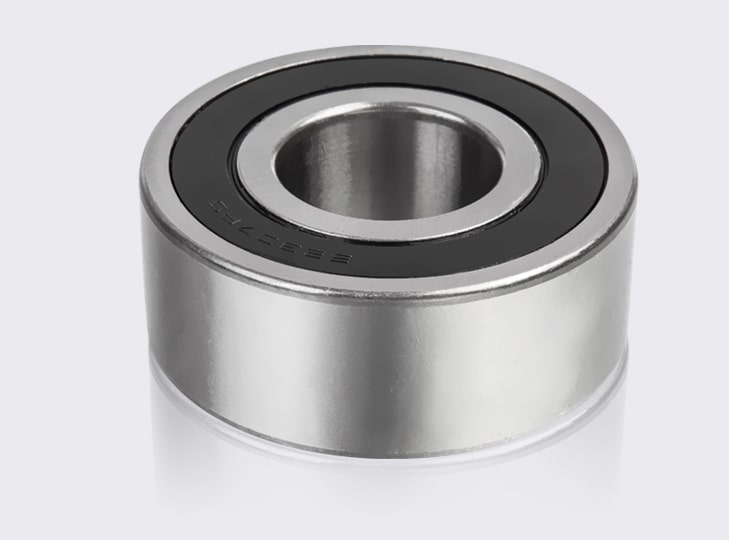

Deep groove Ball Bearing 62307

Product Name:

Deep groove Ball Bearing 62307

Number :

62307

Product Description:

Bearing No.	Bore		O.D		Width		Load Rating（KN）		Ball Complement		Maxronout Speed		Weight(kg)
	d		D	B	B		Dynamic	Static	No.	Size	Grease	Oil
	mm	in	mm	in	mm	in	Cr	Cor	No.	mm	r/mm	r/mm
62300	10	0.3937	35	1.3780	17	0.6693	8.20	3.50	6	7.144	23000	27000	0.073
62301	12	0.4724	37	1.4567	17	0.6693	9.70	4.20	6	7.938	20000	24000	0.0814
62302	15	0.5906	42	1.6535	17	0.6693	11.40	5.45	7	7.938	17000	21000	0.105
62303	17	0.6693	47	1.8504	19	0.7480	13.50	6.55	7	8.731	16000	19000	0.146
62304	20	0.7874	52	2.0447	21	0.8276	15.90	7.90	7	9.525	14000	17000	0.195
62305	25	0.9843	62	2.4409	24	0.9448	21.20	10.90	7	11.500	12000	14000	0.306
62306	30	1.1811	72	2.8346	27	1.0630	26.70	15.00	7	12.000	10000	12000	0.478
62307	35	1.3779	80	3.1496	31	1.2204	33.50	19.10	8	13.494	8800	10000	0.647
62308	40	1.5748	90	3.5433	33	1.2992	40.50	24.00	8	15.081	7800	9200	0.885
62309	45	1.7716	100	3.9370	36	1.4173	53.00	32.00	8	17.462	7000	8200	1.156
62310	50	1.9685	110	4.3307	40	1.5748	62.00	38.50	8	19.050	6400	7500	1.498
