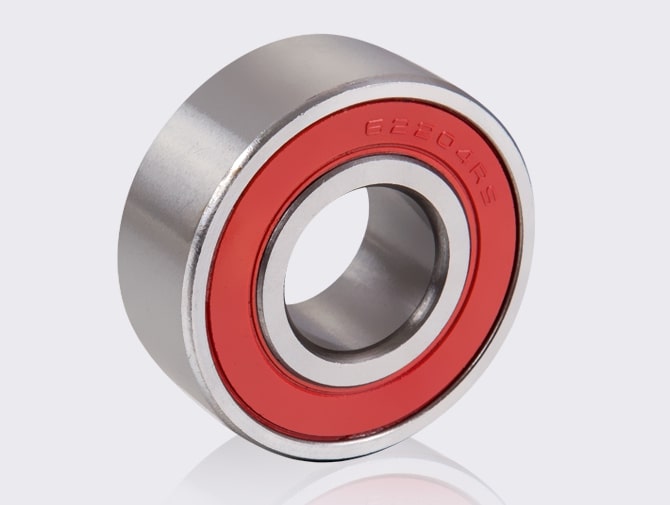

Deep groove Ball Bearing 62204

Product Name:

Deep groove Ball Bearing 62204

Number :

62204

Product Description:

Bearing No.	Bore		O.D		Width		Load Rating（KN）		Ball Complement		Maxronout Speed		Weight(kg)
	d		D	B	B		Dynamic	Static	No.	Size	Grease	Oil
	mm	in	mm	in	mm	in	Cr	Cor	No.	mm	r/mm	r/mm
62200	10	0.3937	30	1.1811	14	0.5512	5.10	2.39	8	4.763	25000	30000	0.04
62201	12	0.4724	32	1.2598	14	0.5512	6.10	2.75	7	5.953	22000	26000	0.045
62202	15	0.5906	35	1.378	14	0.5512	7.75	3.60	8	5.953	19000	23000	0.054
62203	17	0.6693	40	1.5748	16	0.6299	9.60	4.60	8	6.747	18000	21000	0.083
62204	20	0.7874	47	1.8504	18	0.7086	12.80	6.65	8	7.938	16000	18000	0.13
62205	25	0.9843	52	2.1645	18	0.7086	14.00	7.85	9	7.938	13000	15000	0.15
62206	30	1.1811	62	2.4409	20	0.7874	19.50	11.30	9	9.525	11000	13000	0.24
62207	35	1.3779	72	2.8346	23	0.9055	25.70	15.30	9	11.112	9800	11000	0.37
62208	40	1.5748	80	3.1496	23	0.9055	29.10	17.80	9	12.000	8700	10000	0.44
62209	45	1.7716	85	3.3464	23	0.9055	32.50	20.40	10	12.000	7800	9200	0.48
62210	50	1.965	90	3.5464	23	0.9055	35.00	23.2	10	12.700	7100	8300	0.52
