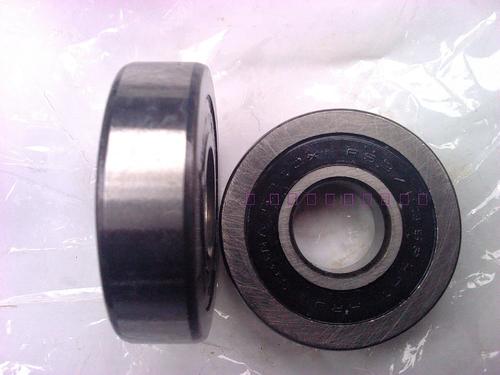

LR5305KDD Support Roller Bearing

Product Name:

LR5305KDD Support Roller Bearing

Number :

LR5305KDD

Product Description:

For the LR5305KDD SUPPORT ROLLER bearing,the advantages of our company:

1. We are manufacturer with more than 25 years industry experience,offer you the most competitive price and most stable quality.
2. Perfect group of technical engineers offer you the best support.
3. Well-trained group of International sales provide you the best service.

4. Smooth, silent and low vibration assure durability with long life.
5. Extensive range of bearing types, price, quality.
6. Our own brand “BLJ”,OEM customization, customers' logo also available
7. Good ability of cost control brings you reasonable price, long-term partner of forwarder brings you low freight
8. Special discount and protection of sales area provide to our distributors

Code	Weight	Dimensions(mm)						Load		Fatigue limit load	Speed limit
FEIYU	Weight	D	d	B	C	R	Rs	Cw(N)	Cow(N)	Puw(N)	nD sealsn	D shield
LR604 NPP	10	13	4	4	4		0.2	860	350	7	24000	35000
LR604 NPPU	10	13	4	4	4	500	0.2	860	350	7	24000	35000
LR604 KDD	10	13	4	4	4		0.2	860	350	7	24000	35000
LR604 KDDU	10	13	4	4	4	500	0.2	860	350	7	24000	35000
LR605 NPP	10	16	5	5	5		0.2	1190	490	10	23000	33000
LR605 NPPU	10	16	5	5	5	500	0.2	1190	490	10	23000	33000
LR605 KDD	10	16	5	5	5		0.2	1190	490	10	23000	33000
LR605 KDDU	10	16	5	5	5	500	0.2	1190	490	10	23000	33000
LR606 NPP	10	19	6	6	6		0.3	1740	700	40	22000	31000
LR606 NPPU	10	19	6	6	6	500	0.3	1740	700	40	22000	31000
LR606 KDD	10	19	6	6	6		0.3	1740	700	40	22000	31000
LR606 KDDU	10	19	6	6	6	500	0.3	1740	700	40	22000	31000
LR607 NPP	10	22	7	6	6		0.3	2130	870	46	20000	29000
LR607 NPPU	10	22	7	6	6	500	0.3	2130	870	46	20000	29000
LR607 KDD	10	22	7	6	6		0.3	2130	870	46	20000	29000
LR607 KDDU	10	22	7	6	6	500	0.3	2130	870	46	20000	29000
LR608 NPP	20	24	8	7	7		0.3	2750	1250	58	19000	28000
LR608 NPPU	20	24	8	7	7	500	0.3	2750	1250	58	19000	28000
LR608 KDD	20	24	8	7	7		0.3	2750	1250	58	19000	28000
LR608 KDDU	20	24	8	7	7	500	0.3	2750	1250	58	19000	28000
LR6000 NPP	20	28	10	8	8		0.3	3650	1700	52	17000	24000
LR6000 NPPU	20	28	10	8	8	500	0.3	3650	1700	52	17000	24000
LR6000KDD	20	28	10	8	8		0.3	3650	1700	52	17000	24000
LR6000KDDU	20	28	10	8	8	500	0.3	3650	1700	52	17000	24000
LR6001NPP	30	30	12	8	8		0.3	4300	2100	77	16000	22000
LR6001NPPU	30	30	12	8	8	500	0.3	4300	2100	77	16000	22000
LR6001KDD	30	30	12	8	8		0.3	4300	2100	77	16000	22000
LR6001KDDU	30	30	12	8	8	500	0.3	4300	2100	77	16000	22000
LR200NPP	50	32	10	9	9		0.6	4350	2130	88	13000	17000
LR200NPPU	50	32	10	9	9	500	0.6	4350	2130	88	13000	17000
LR200KDD	50	32	10	9	9		0.6	4350	2130	88	13000	17000
LR200KDDU	50	32	10	9	9	500	0.6	4350	2130	88	13000	17000
LR201NPP	50	35	12	10	10		0.6	5600	2700	112	12000	15000
LR201NPPU	50	35	12	10	10	500	0.6	5600	2700	112	12000	15000
LR201KDD	50	35	12	10	10		0.6	5600	2700	112	12000	15000
LR201KDDU	50	35	12	10	10	500	0.6	5600	2700	112	12000	15000
LR201-15NPP	70	35	12	15	10		0.6	5600	2700	112	12000	15000
LR201-15NPPU	70	35	12	15	10	500	0.6	5600	2700	112	12000	15000
LR201-15KDD	70	35	12	15	10		0.6	5600	2700	112	12000	15000
LR201-15KDDU	70	35	12	15	10	500	0.6	5600	2700	112	12000	15000
LR202NPP	70	40	15	11	11		0.6	6500	3300	136	11000	13000
LR202NPPU	70	40	15	11	11	500	0.6	6500	3300	136	11000	13000
LR202KDD	70	40	15	11	11		0.6	6500	3300	136	11000	13000
LR202KDDU	70	40	15	11	11	500	0.6	6500	3300	136	11000	13000
LR202-14NPP	80	40	15	14.4	11		0.6	6500	3300	136	11000	13000
LR202-14NPPU	80	40	15	14.4	11	500	0.6	6500	3300	136	11000	13000
LR202-14KDD	80	40	15	14.4	11		0.6	6500	3300	136	11000	13000
LR202-14 KDDU	80	40	15	14.4	11	500	0.6	6500	3300	136	11000	13000
LR203NPP	110	47	17	12	12		0.6	8400	4400	183	9000	12000
LR203NPPU	110	47	17	12	12	500	0.6	8400	4400	183	9000	12000
LR203KDD	110	47	17	12	12		0.6	8400	4400	183	9000	12000
LR203KDDU	110	47	17	12	12	500	0.6	8400	4400	183	9000	12000
LR204NPP	150	52	20	14	14		1	10500	5600	233	8000	10000
LR204NPPU	150	52	20	14	14	500	1	10500	5600	233	8000	10000
LR204KDD	150	52	20	14	14		1	10500	5600	233	8000	10000
LR204KDDU	150	52	20	14	14	500	1	10500	5600	233	8000	10000
LR205NPP	230	62	25	15	15		1	12500	7100	291	7000	8500
LR205NPPU	230	62	25	15	15	500	1	12500	7100	291	7000	8500
LR205KDD	230	62	25	15	15		1	12500	7100	291	7000	8500
LR205KDDU	230	62	25	15	15	500	1	12500	7100	291	7000	8500
LR206NPP	330	72	30	16	16		1	16600	9600	391	5500	7500
LR206NPPU	330	72	30	16	16	500	1	16600	9600	391	5500	7500
LR206KDD	330	72	30	16	16		1	16600	9600	391	5500	7500
LR206KDDU	330	72	30	16	16	500	1	16600	9600	391	5500	7500
LR207NPP	400	80	35	17	17		1.1	20200	11900	490	4500	6300
LR207NPPU	400	80	35	17	17	500	1.1	20200	11900	490	4500	6300
LR207KDD	400	80	35	17	17		1.1	20200	11900	490	4500	6300
LR207KDDU	400	80	35	17	17	500	1.1	20200	11900	490	4500	6300
LR208NPP	450	85	40	18	18		1.1	22800	13600	530	4000	5000
LR208NPPU	450	85	40	18	18	500	1.1	22800	13600	530	4000	5000
LR208KDD	450	85	40	18	18		1.1	22800	13600	530	4000	5000
LR208KDDU	450	85	40	18	18	500	1.1	22800	13600	530	4000	5000
LR209NPP	500	90	45	19	19		1.1	22500	13700	564	3600	4500
LR209NPPU	500	90	45	19	19	500	1.1	22500	13700	564	3600	4500
LR209KDD	500	90	45	19	19		1.1	22500	13700	564	3600	4500
LR209KDDU	500	90	45	19	19	500	1.1	22500	13700	564	3600	4500
LR50/5NPP	10	17	5	7	7		0.2	1650	950	39	12000	16000
LR50/5NPPU	10	17	5	7	7	500	0.2	1650	950	39	12000	16000
LR50/5KDD	10	17	5	7	7		0.2	1650	950	39	12000	16000
LR50/5KDDU	10	17	5	7	7	500	0.2	1650	950	39	12000	16000
LR50/6NPP	20	19	6	9	9		0.3	2650	1310	54	11000	15000
LR50/6NPPU	20	19	6	9	9	500	0.3	2650	1310	54	11000	15000
LR50/6KDD	20	19	6	9	9		0.3	2650	1310	54	11000	15000
LR50/6KDDU	20	19	6	9	9	500	0.3	2650	1310	54	11000	15000
LR50/7NPP	20	22	7	10	10		0.3	3300	1690	69	10000	14000
LR50/7NPPU	20	22	7	10	10	500	0.3	3300	1690	69	10000	14000
LR50/7KDD	20	22	7	10	10		0.3	3300	1690	69	10000	14000
LR50/7KDDU	20	22	7	10	10	500	0.3	3300	1690	69	10000	14000
LR50/8NPP	30	24	8	11	11		0.3	4200	2360	120	10000	14000
LR50/8NPPU	30	24	8	11	11	500	0.3	4200	2360	120	10000	14000
LR50/8KDD	30	24	8	11	11		0.3	4200	2360	120	10000	14000
LR50/8KDDU	30	24	8	11	11	500	0.3	4200	2360	120	10000	14000
LR5000NPP	30	28	10	12	12		0.3	4750	2850	118	9000	13000
LR5000NPPU	30	28	10	12	12	500	0.3	4750	2850	118	9000	13000
LR5000KDD	30	28	10	12	12		0.3	4750	2850	118	9000	13000
LR5000KDDU	30	28	10	12	12	500	0.3	4750	2850	118	9000	13000
LR5001NPP	30	30	12	12	12		0.3	4950	3100	128	8500	11000
LR5001NPPU	30	30	12	12	12	500	0.3	4950	3100	128	8500	11000
L5001KDD	30	30	12	12	12		0.3	4950	3100	128	8500	11000
LR5001KDDU	30	30	12	12	12	500	0.3	4950	3100	128	8500	11000
LR5002NPP	50	35	15	13	13		0.3	6500	4100	170	7000	10000
LR5002NPPU	50	35	15	13	13	500	0.3	6500	4100	170	7000	10000
LR5002KDD	50	35	15	13	13		0.3	6500	4100	170	7000	10000
LR5002KDDU	50	35	15	13	13	500	0.3	6500	4100	170	7000	10000
LR5003NPP	70	40	17	14	14		0.3	7700	5200	214	6000	9000
LR5003NPPU	70	40	17	14	14	500	0.3	7700	5200	214	6000	9000
LR5003KDD	70	40	17	14	14		0.3	7700	5200	214	6000	9000
LR5003KDDU	70	40	17	14	14	500	0.3	7700	5200	214	6000	9000
LR5004NPP	120	47	20	16	16		0.6	11500	7700	317	5500	8000
LR5004NPPU	120	47	20	16	16	500	0.6	11500	7700	317	5500	8000
LR5004KDD	120	47	20	16	16		0.6	11500	7700	317	5500	8000
LR5004KDDU	120	47	20	16	16	500	0.6	11500	7700	317	5500	8000
LR5005NPP	150	52	25	16	16		0.6	11600	8100	332	4700	7000
LR5005NPPU	150	52	25	16	16	500	0.6	11600	8100	332	4700	7000
LR5005KDD	150	52	25	16	16		0.6	11600	8100	332	4700	7000
LR5005KDDU	150	52	25	16	16	500	0.6	11600	8100	332	4700	7000
LR5006NPP	250	62	30	19	19		1	17200	11100	462	4000	6000
LR5006NPPU	250	62	30	19	19	500	1	17200	11100	462	4000	6000
LR5006KDD	250	62	30	19	19		1	17200	11100	462	4000	6000
LR5006KDDU	250	62	30	19	19	500	1	17200	11100	462	4000	6000
LR5007NPP	300	68	35	20	20		1	17600	13100	490	4000	5300
LR5007NPPU	300	68	35	20	20	500	1	17600	13100	490	4000	5300
LR5007KDD	300	68	35	20	20		1	17600	13100	490	4000	5300
LR5007KDDU	300	68	35	20	20	500	1	17600	13100	490	4000	5300
LR5200NPP	70	32	10	14	14		0.6	6800	4050	168	8000	11000
LR5200NPPU	70	32	10	14	14	500	0.6	6800	4050	168	8000	11000
LR5200KDD	70	32	10	14	14		0.6	6800	4050	168	8000	11000
LR5200KDDU	70	32	10	14	14	500	0.6	6800	4050	168	8000	11000
LR5201NPP	80	35	12	15.9	15.9		0.6	8600	5100	211	7500	10000
LR5201NPPU	80	35	12	15.9	15.9	500	0.6	8600	5100	211	7500	10000
LR5201KDD	80	35	12	15.9	15.9		0.6	8600	5100	211	7500	10000
LR5201KDDU	80	35	12	15.9	15.9	500	0.6	8600	5100	211	7500	10000
LR5202NPP	110	40	15	15.9	15.9		0.6	9800	6200	258	7000	10000
LR5202NPPU	110	40	15	15.9	15.9	500	0.6	9800	6200	258	7000	10000
LR5202KDD	110	40	15	15.9	15.9		0.6	9800	6200	258	7000	10000
LR5202KDDU	110	40	15	15.9	15.9	500	0.6	9800	6200	258	7000	10000
LR5203NPP	170	47	17	17.5	17.5		0.6	12600	8200	342	5500	7500
LR5203NPPU	170	47	17	17.5	17.5	500	0.6	12600	8200	342	5500	7500
LR5203KDD	170	47	17	17.5	17.5		0.6	12600	8200	342	5500	7500
LR5203KDDU	170	47	17	17.5	17.5	500	0.6	12600	8200	342	5500	7500
LR5204NPP	230	52	20	20.6	20.6		1	15800	10500	433	5000	7000
LR5204NPPU	230	52	20	20.6	20.6	500	1	15800	10500	433	5000	7000
LR5204KDD	230	52	20	20.6	20.6		1	15800	10500	433	5000	7000
LR5204KDDU	230	52	20	20.6	20.6	500	1	15800	10500	433	5000	7000
LR5205NPP	340	62	25	20.6	20.6		1	18500	13000	532	4500	6500
LR5205NPPU	340	62	25	20.6	20.6	500	1	18500	13000	532	4500	6500
LR5205KDD	340	62	25	20.6	20.6		1	18500	13000	532	4500	6500
LR5205KDDU	340	62	25	20.6	20.6	500	1	18500	13000	532	4500	6500
LR5206NPP	510	72	30	23.8	23.8		1	24600	21400	880	3500	5000
LR5206NPPU	510	72	30	23.8	23.8	500	1	24600	21400	880	3500	5000
LR5206KDD	510	72	30	23.8	23.8		1	24600	21400	880	3500	5000
LR5206KDDU	510	72	30	23.8	23.8	500	1	24600	21400	880	3500	5000
LR5207NPP	660	80	35	27	27		1.1	30500	22400	927	2800	3900
LR5207NPPU	660	80	35	27	27	500	1.1	30500	22400	927	2800	3900
LR5207KDD	660	80	35	27	27		1.1	30500	22400	927	2800	3900
LR5207KDDU	660	80	35	27	27	500	1.1	30500	22400	927	2800	3900
LR5208NPP	750	85	40	30.2	30.2		1.1	34500	25500	1060	2500	3500
LR5208NPPU	750	85	40	30.2	30.2	500	1.1	34500	25500	1060	2500	3500
LR5208KDD	750	85	40	30.2	30.2		1.1	34500	25500	1060	2500	3500
LR5208KDDU	750	85	40	30.2	30.2	500	1.1	34500	25500	1060	2500	3500
LR5302NPP	150	47	15	19	19		1	14600	9200	380	6500	10000
LR5302NPPU	150	47	15	19	19	500	1	14600	9200	380	6500	10000
LR5302KDD	150	47	15	19	19		1	14600	9200	380	6500	10000
LR5302KDDU	150	47	15	19	19	500	1	14600	9200	380	6500	10000
LR5303NPP	210	52	17	22.2	22.2		1	17200	11100	462	4700	6500
LR5303NPPU	210	52	17	22.2	22.2	500	1	17200	11100	462	4700	6500
LR5303KDD	210	52	17	22.2	22.2		1	17200	11100	462	4700	6500
LR5303KDDU	210	52	17	22.2	22.2	500	1	17200	11100	462	4700	6500
LR5304NPP	340	62	20	22.2	22.2		1.1	21100	14500	606	4500	6500
LR5304NPPU	340	62	20	22.2	22.2	500	1.1	21100	14500	606	4500	6500
LR5304KDD	340	62	20	22.2	22.2		1.1	21100	14500	606	4500	6500
LR5304KDDU	340	62	20	22.2	22.2	500	1.1	21100	14500	606	4500	6500
LR5305NPP	500	72	25	25.4	25.4		1.1	27500	19500	813	3900	5500
LR5305NPPU	500	72	25	25.4	25.4	500	1.1	27500	19500	813	3900	5500
LR5305KDD	500	72	25	25.4	25.4		1.1	27500	19500	813	3900	5500
LR5305KDDU	500	72	25	25.4	25.4	500	1.1	27500	19500	813	3900	5500
LR5306NPP	670	80	30	30.2	30.2		1.1	36500	26500	1100	3100	4300
LR5306NPPU	670	80	30	30.2	30.2	500	1.1	36500	26500	1100	3100	4300
LR5306KDD	670	80	30	30.2	30.2		1.1	36500	26500	1100	3100	4300
LR5306KDDU	670	80	30	30.2	30.2	500	1.1	36500	26500	1100	3100	4300
LR5307NPP	970	90	35	34.9	34.9		1.5	44500	33000	1370	2500	3600
LR5307NPPU	970	90	35	34.9	34.9	500	1.5	44500	33000	1370	2500	3600
LR5307KDD	970	90	35	34.9	34.9		1.5	44500	33000	1370	2500	3600
LR5307KDDU	970	90	35	34.9	34.9	500	1.5	44500	33000	1370	2500	3600
LR5308NPP	1200	100	40	36.5	36.5		1.5	56000	42000	1750	2300	3300
LR5308NPPU	1200	100	40	36.5	36.5	500	1.5	56000	42000	1750	2300	3300
LR5308KDD	1200	100	40	36.5	36.5		1.5	56000	42000	1750	2300	3300
LR5308KDDU	1200	100	40	36.5	36.5	500	1.5	56000	42000	1750	2300	3300

Portugues

Russian
