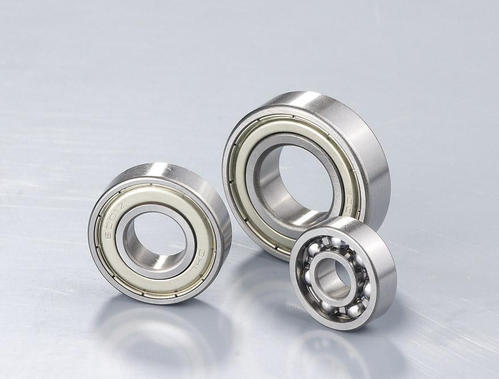

China Ball Bearing 6001zz
Product Description:
Feiyu Bearing is a professional China ball bearing 6001ZZ manufacturer.We can produce from ABEC1 Z1V1 to ABEC7 Z4V4 quality rate,and this time we can provide very competitive price.All the bearings from Feiyu before shipping to Customers with 100 percent diameter and size inspection.
Bearing No. | Bore | O.D | Width | Load Rating(KN) | Ball Complement | Maxronout Speed | Weight(kg) | ||||||
d | D | B | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
mm | in | mm | in | mm | in | Cr | Cor | mm | r/mm | r/mm | |||
605 | 5 | 0.1969 | 14 | 0.5512 | 5 | 0.1969 | 1.02 | 0.49 | 7 | 2.381 | 32000 | 40000 | 0.0035 |
606 | 6 | 0.2362 | 17 | 0.6693 | 6 | 0.2362 | 1.13 | 0.56 | 8 | 2.381 | 30000 | 38000 | 0.006 |
607 | 7 | 0.2756 | 19 | 0.748 | 6 | 0.2362 | 2.01 | 1.05 | 6 | 3.5 | 28000 | 36000 | 0.008 |
608 | 8 | 0.315 | 22 | 0.8661 | 7 | 0.2756 | 2.53 | 1.36 | 7 | 3.969 | 26000 | 34000 | 0.015 |
609 | 9 | 0.3543 | 24 | 0.9449 | 7 | 0.2756 | 2.57 | 1.36 | 7 | 3.969 | 24000 | 32000 | 0.016 |
6000 | 10 | 0.3937 | 26 | 1.0236 | 8 | 0.315 | 4.55 | 1.95 | 7 | 4.763 | 29000 | 34000 | 0.019 |
6001 | 12 | 0.4724 | 28 | 1.1024 | 8 | 0.315 | 5.1 | 2.39 | 8 | 4.763 | 26000 | 30000 | 0.022 |
6002 | 15 | 0.5906 | 32 | 1.2598 | 9 | 0.3543 | 5.6 | 2.84 | 9 | 4.763 | 22000 | 26000 | 0.03 |
6003 | 17 | 0.6693 | 35 | 1.378 | 10 | 0.3937 | 6.8 | 3.35 | 10 | 4.763 | 20000 | 24000 | 0.039 |
6004 | 20 | 0.7874 | 42 | 1.6535 | 12 | 0.4724 | 9.4 | 5.05 | 9 | 6.35 | 18000 | 21000 | 0.069 |
6005 | 25 | 0.9843 | 47 | 1.8504 | 12 | 0.4724 | 10.1 | 5.85 | 10 | 6.35 | 15000 | 18000 | 0.06 |
6006 | 30 | 1.1811 | 55 | 2.1645 | 13 | 0.5118 | 13.2 | 8.3 | 11 | 7.144 | 13000 | 15000 | 0.12 |
6007 | 35 | 1.3779 | 62 | 2.4409 | 14 | 0.5512 | 16 | 10.3 | 11 | 7.938 | 12000 | 14000 | 0.16 |
6008 | 40 | 1.5748 | 68 | 2.6772 | 15 | 0.5906 | 16.8 | 11.5 | 12 | 7.938 | 10000 | 12000 | 0.19 |
6009 | 45 | 1.7716 | 75 | 2.9528 | 16 | 0.6299 | 21 | 15.1 | 12 | 8.731 | 9200 | 11000 | 0.25 |
6010 | 50 | 1.965 | 80 | 3.1496 | 16 | 0.6299 | 21.8 | 16.6 | 13 | 8.731 | 8400 | 9800 | 0.26 |
