Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

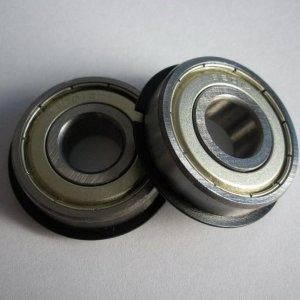

CHINA Ball Bearing 6200ZNR

Product Name:

CHINA Ball Bearing 6200ZNR

Number :

CHINA BALL BEARING 6200ZNR

Product Description:

Producing according to Customers'requirment

Main dimensions					Wheel groove and stop ring size					Code			The basic dynamic load rating	Basic static load rating	Allow speed		Assembly related to size
d	D	B	r	r1	D1	a	b	D2	f	Code			The basic dynamic load rating	Basic static load rating	Grease lubrication	Oil lubrication	Da	Da	Dx	Ra	Cy	Weight	Code
10	19	5	0.3	0.3	17.7	1.05	0.8	21.8	0.65	6800N	6800NR		1715	833	37000	43000	12.74	16.26				0.0056	6800N
	19	7	0.3	0.3	17.7	1.05	0.8	21.8	0.65	63800N	63800NR		1715	833	37000	43000	12.74	16.26				0.0074	63800N
	22	6	0.3	0.3	20.8	1.05	0.8	24.8	0.7	6900N	6900NR		2700	1270	33000	38000	12	20	25.5	0.3	1.5	0.01	6900N
	26	8	0.3	0.3	24.5	1.35	0.87	28.7	0.84	6000N	6000NR		4550	1970	30000	36000	12	24	29.4	0.3	1.9	0.018	6000N
	30	9	0.6	0.5	28.17	2.06	1.35	34.7	1.12	6200N	6200NR	6200ZNR	5100	2390	24000	30000	15	25	35.5	0.6	2.9	0.032	6200N
	35	11	0.6	0.5	33.17	2.06	1.35	39.7	1.12	6300N	6300NR	6300ZNR	8100	3450	21000	26000	15	30	40.5	0.6	2.9	0.053	6300N
12	21	5	0.3	0.3	19.7	1.05	0.8	23.8	0.65	6801N	6801NR	6801ZNR	1911	1039	33000	39000	14.8	18.3				0.0065	6801N
	21	7	0.3	0.3	19.7	1.05	0.8	23.8	0.65	63801N	6380NR		1911	1039	33000	39000	14.8	18.3				0.0085	63801N
	24	6	0.3	0.3	22.8	1.05	0.8	26.8	0.7	6901N	6901NR	6901ZNR	2900	1460	30000	35000	14	22	31.5	0.3	1.5	0.012	6901N
	28	8	0.3	0.3	26.5	1.35	0.87	30.7	0.84	6001N	6001NR	6001ZNR	5100	2370	28000	32000	14	26	31.4	0.3	1.9	0.022	6001N
	32	10	0.6	0.5	30.15	2.06	1.35	36.7	1.12	6201N	6201NR	6201ZNR	6800	3050	22000	27000	17	27	37.5	0.6	2.9	0.037	6201N
	37	12	1	0.5	34.77	2.06	1.35	41.3	1.12	6301N	6301NR	6301ZNR	9800	4250	19000	24000	18	31	42	0.6	2.9	0.06	6301N
	42	13	1	0.5	39.75	2.06	1.35	46.3	1.12	6401N	6401NR	6401ZNR	11600	5150	16000	21000	19	35	47	0.6	2.9	0.048	6401N
15	24	5	0.3	0.3	22.7	1.05	0.8	26.8	0.7	6802N	6802NR	6802ZNR	2068	1254	28000	33000	17.8	21.3				0.0076	6802N
	24	7	0.3	0.3	22.7	1.05	0.8	26.8	0.7	63802N	63802NR		2068	1254	28000	33000	17.8	21.3				0.001	63802N
	28	7	0.3	0.3	26.7	1.3	0.95	30.8	0.85	6902N	6902NR	6902ZNR	4300	2250	26000	31000	17	26	31.5	0.3	1.8	0.017	6902N
	32	9	0.3	0.3	30.15	2.06	1.35	36.7	0.85	6002N	6002NR	6002ZNR	5600	2840	23000	28000	17	30	37.5	0.3	2.9	0.033	6002N
	35	11	0.6	0.5	33.17	2.06	1.35	39.7	1.12	6202N	6202NR	6202ZNR	7650	3700	19000	24000	20	30	40.5	0.6	2.9	0.045	6202N
	42	13	1	0.5	39.75	2.06	1.35	46.3	1.12	6302N	6302NR	6302ZNR	11400	5400	17000	20000	21	36	47	1	2.9	0.082	6302N
	52	15	1.1	0.5	49.73	2.46	1.35	57.9	1.12	6402N	6402NR	6402ZNR	15900	7300	14000	18000	24	43	58.5	1	2.9	0.137	6402N
17	26	0.3	0.3	0.3	25	1.05	0.8	28.8	0.7	6803N	6803NR	6803ZNR	2234	1460	26000	30000	19.8	23.3				0.0082	6803N
	26	0.3	0.3	0.3	25	1.05	0.8	28.8	0.7	63803N	63803NR		2234	1460	26000	30000	19.8	23.3				0.011	63803N
	30	0.3	0.3	0.3	28.7	1.3	0.95	32.8	0.85	6903N	6903NR	6903ZNR	4600	2550	24000	29000	19	28	33.5	0.3	1.8	0.019	6903N
	35	0.3	0.3	0.3	33.17	2.06	1.35	39.7	1.12	6003N	6003NR	6003ZNR	6000	3250	20000	25000	19	33	40.5	0.3	2.9	0.041	6003N
	40	0.6	0.6	0.5	38.1	2.06	1.35	44.6	1.12	6203N	6203NR	6203ZNR	9550	4800	17000	21000	22	35	45.5	0.6	2.9	0.065	6203N
	47	1	1	0.5	44.6	2.46	1.35	52.7	1.12	6303N	6303NR	6303ZNR	13600	6550	15000	18000	23	41	53.5	1	3.3	0.115	6303N
	62	1.1	1.1	0.5	59.61	3.28	1.9	67.7	1.7	6403N	6403NR	6403ZNR	22700	10800	12000	15000	26	53	68.5	1	4.6	0.271	6403N
20	32	0.3	0.3	0.3	30.7	1.3	0.95	34.8	0.85	6804N	6804NR	6804ZNR	4000	2470	26000	24000	22	30	35.5	0.3	1.8	0.02	6804N
	32	0.3	0.3	0.3	30.7	1.3	0.95	34.8	0.85	63804N	63804NR		4000	2470	26000	24000	22	30	35.5	0.3	1.8	0.024	63804N
	37	0.3	0.3	0.3	35.7	1.7	0.95	39.8	0.85	6904N	6904NR	6904ZNR	6350	3700	24000	23000	22	35	40.5	0.3	2.3	0.037	6904N
	42	0.3	0.3	0.3	39.75	2.06	1.35	46.3	1.12	6004N	6004NR	6004ZNR	9400	5000	20000	21000	24	38	47	0.6	2.9	0.069	6004N
	47	0.6	0.6	0.5	44.6	2.46	1.35	52.7	1.12	6204N	6204NR	6204ZNR	12800	6600	17000	18000	26	41	53.5	1	3.3	0.106	6204N
	52	1.1	1.1	0.5	49.73	2.46	1.35	57.9	1.12	6304N	6304NR	6304ZNR	15900	7900	15000	16000	27	45	58.5	1	3.3		6304N
	72	1.1	1.1	0.5	68.81	3.28	1.9	78.6	1.7	6404N	6404NR	6404ZNR	31000	15200	12000	13000	29	63	80	1	4.6	0.408	6404N
22	44	0.6	0.6	0.5	41.75	2.06	1.5	48.3	1.07	60/22N	60/22NR		9400	5150	17000	20000	26	40	49	0.6	2.92	0.073	60/22N
	50	1	1	0.5	47.6	2.46	1.35	55.7	1.12	62/22N	62/22NR	62/22ZNR	13900	6950	13000	17000	28	44	56.5	1	3.3	0.12	62/22N
	56	1.1	1.1	0.5	53.6	2.46	1.35	61.7	1.12	63/22N	63/22NR	63/22ZNR	18400	9250	12000	15000	29	49	62.5	1	3.3	0.176	63/22N
25	37	7	0.3	0.3	35.7	1.3	0.95	39.8	0.85	6805N	6805NR	6805ZNR	4300	2950	18000	20000	27	35	40.5	0.3	1.8	0.023	6805N
	37	10	0.3	0.3	35.7	1.3	0.95	39.8	0.85	63805N	63805NR		4300	2950	18000	20000	27	35	40.5	0.3	1.8	0.032	63805N
	42	9	0.3	0.3	40.7	1.7	0.95	44.8	0.85	6905N	6905NR	6905ZNR	7000	4500	16000	20000	27	40	45.5	0.3	2.3	0.043	6905N
	47	12	0.6	0.5	44.6	2.06	1.35	52.7	1.12	6005N	6005NR	6005ZNR	10100	5850	15000	18000	29	43	53.5	0.6	2.9	0.078	6005N
	52	15	1	0.5	49.73	2.46	1.35	57.9	1.12	6205N	6205NR	6205ZNR	14000	7900	12000	16000	31	46	58.5	1	3.3	0.128	6205N
	62	17	1.1	0.5	59.61	3.28	1.9	67.7	1.7	6305N	6305NR	6305ZNR	23600	12100	11000	14000	32	55	68.5	1	4.6	0.232	6305N
	80	21	1.5	0.5	76.31	3.28	1.9	86.6	1.7	6405N	6405NR		40000	20100	9500	11000	35	70	88	1.5	4.6	0.528	64005N
28	52	12	0.6	0.5	49.73	2.06	1.5	57.9	1.07	60/28N	60/28NR		12400	7400	14000	16000	32	48	58.5	0.6	2.9	0.097	60/28N
	58	16	1	0.5	55.6	2.46	1.35	63.7	1.12	62/28N	62/28NR	62/28ZNR	17900	9750	11000	14000	34	52	64.5	1	3.3	0.175	62/28N
	68	18	1.1	0.5	64.82	3.28	1.9	74.6	1.7	63/28N	63/28NR	63/28ZNR	26800	14000	10000	12000	35	61	76	1	4.6	0.287	63/28N
30	42	7	0.3	0.3	40.7	1.3	0.95	44.8	0.85	6806N	6806NR	6806ZNR	4500	3400	15000	17000	32	40	45.5	0.3	1.8	0.027	6806N
	42	10	0.3	0.3	40.7	1.3	0.95	44.8	0.85	63806N	63806NR		4500	3400	15000	18000	32	40	45.5	0.3	1.8	0.036	63806N
	47	9	0.3	0.3	45.7	1.7	0.95	49.8	0.85	6906N	6906NR	6906ZNR	7250	5000	14000	16000	32	45	50.5	0.3	2.3	0.047	6906N
	55	13	1	0.5	52.6	2.08	1.35	60.7	1.12	6006N	6006NR	6006ZNR	13200	8300	12000	15000	35	50	61.5	1	2.9	0.113	6006N
	62	16	1	0.5	59.61	3.28	1.9	67.7	1.7	6206N	6206NR	6206ZNR	19500	11300	10000	13000	36	56	68.5	1	4.6	0.199	6206N
	72	19	1.1	0.5	68.81	3.28	1.9	78.6	1.7	6306N	6306NR	6306ZNR	26700	15000	9200	11000	37	65	80	1	4.6	0.346	6306N
	90	23	1.5	0.5	86.79	3.28	2.7	96.5	2.46	6406N	6406NR		43500	23800	8500	9500	40	80	98	1.5	4.6	0.72	6406N
32	58	13	1	0.5	55.6	2.08	1.5	63.7	1.07	60/32N	60/32NR		15000	9150	12000	14000	37	53	64.5	1	2.9	0.127	60/32N
	65	17	1	0.5	62.6	3.28	1.9	70.7	1.7	62/32N	62/32NR	62/32ZNR	22400	13100	9500	12000	38	59	71.5	1	4.6	0.23	62/32N
	75	20	1.1	0.5	71.83	3.28	1.9	81.6	1.7	63/32N	63/32NR	63/32ZNR	30000	16200	9000	11000	39	68	83	1	4.6	0.382	63/32N
35	47	7	0.3	0.3	45.7	1.3	0.95	49.8	0.85	6807N	6807NR	6807ZNR	4900	4000	13000	15000	37	45	50.5	0.3	1.8	0.03	6807N
	55	10	0.6	0.5	53.7	1.7	0.95	57.8	0.85	6907N	6907NR	6907ZNR	10400	7150	12000	14000	39	51	58.5	0.6	2.3	0.075	6907N
	62	14	1	0.5	59.61	2.08	1.9	67.7	1.7	6007N	6007NR	6007ZNR	16000	10300	11000	13000	40	57	68.5	1	3.4	0.15	6007N
	72	17	1.1	0.5	68.81	3.28	1.9	78.6	1.6	6207N	6207NR	6207ZNR	25700	15300	9000	11000	42	65	80	1	4.6	0.288	6207N
	80	21	1.5	0.5	76.81	3.28	1.9	86.6	1.6	6307N	6307NR	6307ZNR	33500	19100	8400	10000	44	71	88	1.5	4.6	0.457	6307N
	100	25	1.5	0.5	96.8	3.28	2.7	106.5	2.46	6407N	6407NR		55000	31000	7000	8500	45	90	108	1.5	4.6	0.936	6407N
40	52	7	0.3	0.3	50.7	1.3	0.95	54.8	0.85	6808N	6808NR	6808ZNR	5050	4350	12000	14000	42	50	55.5	0.3	1.8	0.034	6808N
	62	12	0.6	0.5	60.7	1.7	0.95	64.8	0.85	6908N	6908NR	6908ZNR	13700	9900	11000	13000	44	58	65.5	0.6	2.3	0.111	6908N
	68	15	1	0.5	64.82	2.49	1.9	74.6	1.7	6008N	6008NR	6008ZNR	16800	11500	9500	12000	45	63	76	1	3.8	0.186	6008N
	80	18	1.1	0.5	76.81	3.28	1.9	86.6	1.7	6208N	6208NR	6208ZNR	29100	17900	8200	10000	47	73	88	1	4.6	0.366	6208N
	90	23	1.5	0.5	86.79	3.28	2.7	96.5	2.46	6308N	6308NR	6308ZNR	40500	24100	7500	9000	49	81	98	1.5	5.9	0.633	6308N
	110	27	2	0.5	106.81	3.28	2.7	116.6	2.46	6408N	6408NR		63500	36500	6500	8000	51	99	118	2	5.4	1.2	6408N
45	58	7	0.3	0.3	56.7	1.3	0.95	60.8	0.85	6809N	6809NR	6809ZNR	6400	5500	11000	13000	47	56	61.5	0.3	1.8	0.042	6809N
	68	12	0.6	0.5	66.7	1.7	0.95	70.8	0.85	6909N	6909NR	6909ZNR	14100	10900	10000	12000	49	64	72	0.6	2.3	0.124	6909N
	75	16	1	0.5	71.83	2.49	1.9	81.6	1.7	6009N	6009NR	6009ZNR	21000	15200	8800	11000	50	70	83.5	1	3.8	0.239	6009N
	85	19	1.1	0.5	81.81	3.28	1.9	91.6	1.7	6209N	6209NR	6209ZNR	32500	20500	7600	9300	52	78	93	1	4.6	0.407	6209N
	100	25	1.5	0.5	96.8	3.28	2.7	106.5	2.46	6309N	6309NR	6309ZNR	53000	32000	6700	8000	54	91	108	1.5	5.4	0.833	6309N
	120	29	2	0.5	115.21	4.06	3.1	129.7	2.82	6409N	6409NR		77500	45000	6000	7200
