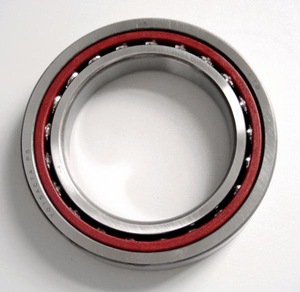

Angular Contact Ball Bearing 72 series

Product Name:

Angular Contact Ball Bearing 72 series

Number :

72 series

Product Description:

Main dimensions(mm)				Model	Basic static load rating Cor(N)	Basic static load rating Cor(N)	Reference quality(KG)	Model
d	D	B	r	Model	Basic static load rating Cor(N)	Basic static load rating Cor(N)	Reference quality(KG)	Model
10	30	14	0.6	4200	9230	5200	0.049	4200
10	35	17	0.6	4300	14300	8900	0.091	4300
12	32	14	0.6	4201	10600	6200	0.053	4201
12	37	17	1	4301	13000	7800	0.092	4301
15	35	14	0.6	4202	11900	7500	0.059	4202
15	42	17	1	4302	14800	9500	0.12	4302
17	40	16	0.6	4203	14800	9500	0.09	4203
17	47	19	1	4303	19500	13200	0.16	4303
20	47	18	1	4204	17800	12500	0.14	4204
20	52	21	1.1	4304	23400	16000	0.21	4304
25	52	18	1	4205	19000	14600	0.16	4205
25	62	24	1.1	4305	31900	22400	0.34	4305
30	62	20	1	4206	26000	20800	0.26	4206
30	72	27	1.1	4306	41000	30000	0.5	4306
35	72	23	1.1	4207	35100	28500	0.4	4207
35	80	31	1.5	4307	50700	38000	0.69	4307
40	80	23	1.1	4208	37100	32500	0.5	4208
40	90	33	1.5	4308	55900	45000	0.95	4308
45	85	23	1.1	4209	39000	36000	0.54	4209
45	100	36	1.5	4309	68900	56000	1.25	4309
50	90	23	1.1	4210	41000	40000	0.58	4210
50	110	40	2	4310	81900	69500	1.7	4310
